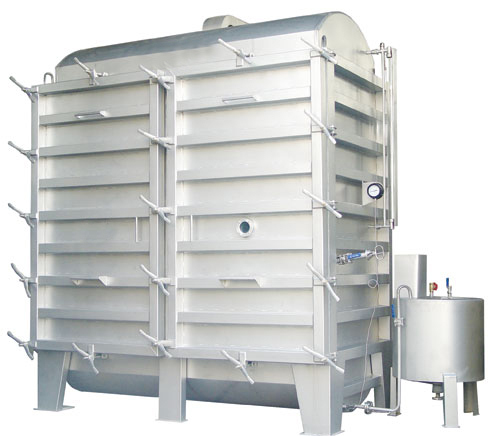

| ◆Product characteristic
It is the suitable for ahead and later dealing with of cotton flax, wool, man-made hairs, terylene and blending twisted yarns. When model Y is packed yarns with, it could finish several dye processes such as swell, refining, bleaching, dying and pliability etc.
The distance of every yarn arranging machine sticks is ranging from 426 to 855 millimeters. So it is the suitable for dyeing of different twisted yarns especially FULL-Layers dyeing machine.
It is equipped with precise and reverse turning controller to ensure twisted yarns inside could be well- distributed dyed by self-altering circulation direction to dye.
Circulation water pump is well designed to fit dye crafts of different types , twisted yarns with much more degrees, changes in speed by leather belt wheels.
Model Y could reduce the errors of crafts vat by being used with two series machines of four ones.
◆Standard Structure
The body of machine and other parts which be getting in touch with dye are made of stainless steel named SUS-316, which has high erosion-resisting ability.
High-efficiency axial-flow pump is made of stainless steel which is equipped with sealed mechanical device.
Be quipped with two sets of yarns-hanging sticks which are made of seamless steel pipes.
Diversion block makes dyes circulation inside well-distributed.
Be quipped with material adding pumps which are made of excellent stainless steels.(excluding those models which under Y20)
Material adding barrel is equipped with churning materials adding, opposite washing and cleaning devices.
Safe and convenient getting device of sample product.
◆Accessories
Rising curve is controlled by computer.
The system of self-motion by the computer control.
The main pump is used in those models which under Y20.
◆Specification of a manufactured item
型号
Model |
总功率
General power
KW |
载量kg
Carrying amount |
标准型 Standard size |
三层型 Three-layer type |
| L(mm) |
W(mm) |
H(mm) |
载量kg
Carrying amount |
L(mm) |
W(mm) |
H(mm) |
| Y5 |
1.1 |
2.2 |
1235 |
820 |
1937 |
|
|
|
|
| Y10 |
1.1 |
4.5 |
1235 |
900 |
1937 |
|
|
|
|
| Y20 |
1.1 |
9 |
1400 |
1050 |
2080 |
|
|
|
|
| Y30 |
2.25 |
14 |
1714 |
1125 |
2050 |
|
|
|
|
| Y50 |
2.25 |
23 |
1714 |
1326 |
2050 |
|
|
|
|
| Y100 |
2.95 |
45 |
2417 |
1357 |
2155 |
|
|
|
|
| Y200 |
4.75 |
90 |
2830 |
1637 |
2210 |
|
|
|
|
| Y300 |
5.5 |
140 |
2815 |
1590 |
3150 |
170 |
2815 |
1590 |
3410 |
| Y400 |
7 |
185 |
2905 |
1880 |
3160 |
235 |
2905 |
1880 |
3420 |
| Y600 |
9 |
275 |
3510 |
2178 |
3305 |
340 |
3510 |
2178 |
3565 |
| Y800 |
12.5 |
360 |
3550 |
2490 |
3310 |
440 |
3550 |
2490 |
3570 |
| Y1000 |
12.5 |
455 |
3775 |
2490 |
3310 |
550 |
3775 |
2490 |
3570 |
| Y1200 |
13.5 |
545 |
3910 |
2760 |
3570 |
650 |
3910 |
2760 |
3830 |
| Y1000X2 |
25 |
910 |
6935 |
2555 |
3310 |
1100 |
6935 |
2555 |
3570 |
| Y1200X2 |
33 |
1090 |
7105 |
2830 |
3570 |
1300 |
7105 |
2830 |
3830 |
| Y1000X4 |
47 |
1820 |
6935 |
5000 |
3310 |
2200 |
6935 |
5000 |
3570 |
◆Technique data of accessories
The highest working temperature:98℃
Rising rate of temperature.
(according to the steamy pressure 6kg/cm2)
About 30 minutes ranging from 20℃ to 98℃
Falling rate of temperature
(according to the refrigerant pressure 30kg/cm2)
About 15 minutes ranging from98℃ to 80℃.
|
