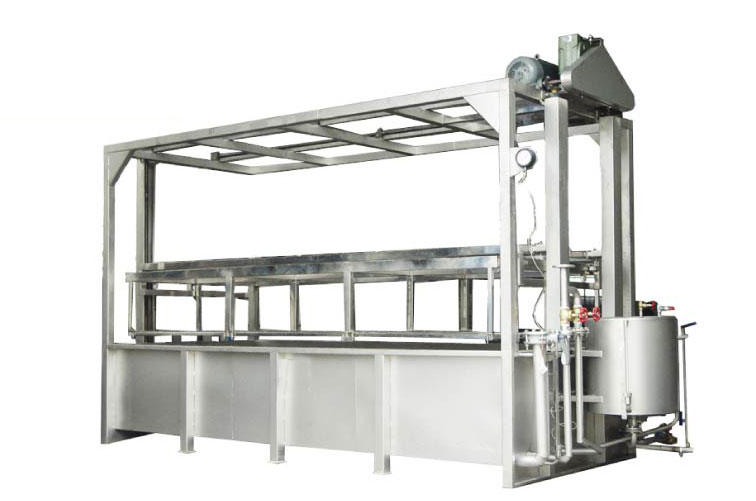

UP-AND-DOWN GARMENT DYEING MACHINE |
 |
|
|
|
|
| It is suitable for dealing with hanging dyes of cotton, terylene, man-made silk etc. The length of dying can be adjusted according to needs. The effect of dye is good. Color is bright. |
| Standard structure |
- High erosion proof stainless steel materials made The main part contacting with the dye liquid.
- Be equipped with adding material barrels and adding material pumps.
- Be equipped with a set of system which control adding materials,opposite washing back and forth and cleaning,circulate devices.
- Be equipped the clothing shelf or twisted yam easel.
- The device vibrate stably.
|
| Accessories |
- The main drive machine adopts frequent machine to control.
- Full auto vibrate stably.
|
| Technique data of accessories |
- The highest work temperature:98°C.
- The rising temperature speed:about 5°C/minute. (according to the steamy pressure 6kg/cm2)
- The falling temperature speed:about 2°C/minute. (according to the steamy pressure 3kg/cm2)
|
|
| Model |
Carrying amount
(a unit) |
Model |
Appearance size |
| L(mm) |
W(mm) |
H(mm) |
| GY-3S |
25.8 |
0.75 |
1720 |
960 |
2300 |
| GY-50 |
50 |
1.5 |
2300 |
960 |
3050 |
| GY-100 |
100 |
2.2 |
2300 |
1550 |
3050 |
| GY-200 |
200 |
2.75 |
3800 |
1550 |
3050 |
| GY-300 |
300 |
2.93 |
5500 |
1550 |
3050 |
| GY-400 |
400 |
4 |
5500 |
2230 |
3050 |
| GY-500 |
500 |
4.5 |
6000 |
2230 |
3050 |
|
|
|
|
