Shenzhen Products >> Garment washing and finishing machine
Dewater Series
Product description
These machines rapidly remove water from fabrics of silk, cotton, chemical fiber,
etc. The degree of dewater attain above 75%. Simple construction, stable operation,
small space occupation, small machine height and no damage to fabric. Suitable
for bleaching, dyeing and washing industries as well as in hospitals, hotels,
military units, factories, etc. The rotary drum is made of stainless steel without
contaminating the fabric. Then the wet fabric can be slung dry within 5 minutes.

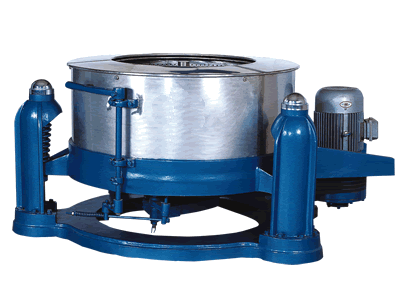

KZ-Dewater machine main technical parameters
 Model  KZ-150  KZ-125  KZ-100  KZ-90  KZ-75  KZ-60  KZ-20A  KZ-10
Rotary cage diameter
(mm)
φ1200  φ1070mm  φ1000mm  φ915mm  φ720mm  φ630mm  φ510mm  φ400mm
Rotary cage height
(mm)
600mm  350mm  350mm  360mm  290mm  290mm  270mm  275mm
Loading,wet weight
(kg)
150kg  125kg  100kg  90kg  75kg  60kg  20kg  10kg
Max.Speed
(r/min)
800dmin  980dmin  1000dmin  1090r/min  1160dmin  1220r/min  1310r/min  1200r/min
Motor Power
(kw)
11KW  7.5KW  5.5KW  5.5KW  3KW  3.0KW  1.5KW  1.1KW
Dnving V belt  C2950x4  B2800x4  B2700x4  B2400x4  B2000x3  B1850x3  A1450x3  B1300x2

Main shaft beaing
6316x2
6315x1
8317x1
6315x2
6314x1
8316x1
6313x1
6314x2
8314xl
6312x1
6313x1
8313x1
6308x1
6311x1
8210x1
6309x1
6310x1
8210x1
6308
6208
8209
6207
6208
8208
Starter bearing   6409x2
51209x1
6207x1
6312x1
6206x1
6311x1
6206x1
6311x1
6206x1
6309x1
6206x1
6309x1
6206x2

Dimensions
(lxwxh)mm
2320x1860
x1085
2080x1600
x970
1980x1600
x900
1820x1500
x870
1460x1180
x780
1400x1100
x760
1200x800
x700
950x600
x600
Weight(kg)  2000kg  1800kg  1700kg  1500kg  600kg  550kg  450kg  230kg
Foundation
bolt
M24x700  M20x700  M20x700  M20x700  M16x600  M 16x600  M16x500  M16x500
foundation dimensions
for installation
(mm)
R840 R725
R720
R664
R500
R485
R370
R300
  1492x1492
x1372
1290x1290
x1180
1305x1305
x1100
1204x1204
x1017
900x900
x730
884x884
x728
670x670
x567
548x548
x446

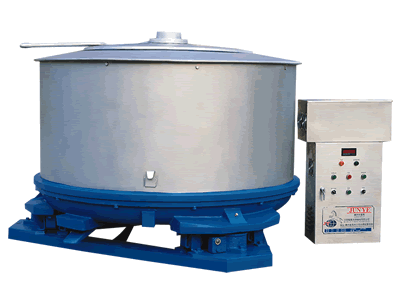

HS.HE TYPE Direct-driving dewater machine technical parameters

Model
Rotary cage size(mm)
Loading wet weight(kg)
Max.speed
(r/min)
Motor power(kW)
   Dimensions LxWxH(mm)
Weight
(kg)
HS-1070
φ1070x550
200
1400
1610x1500x1150
1850
HS-1200
φ1200x600
250
890
1850x1750x1130
2000
HE-1500
φ1500x695
500
750
10
1950x1850x1350
2500
HE-1800
φ1800x830
1000
750
15
2580x2200x1550
4000
