Shenzhen Products >> Knitting fabric dyeing machine and lab equipment

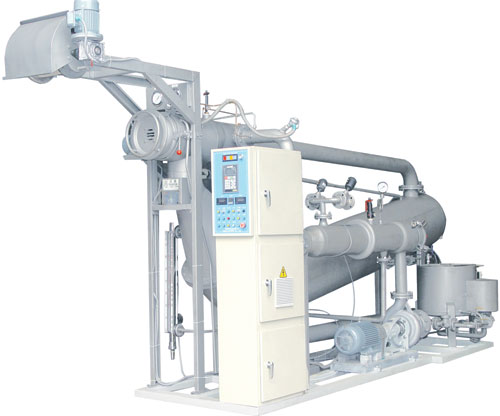

ECL-S Medium batch yarn dyeing machine

◆Standard structure

  • Machine body and major parts wetted by dyeing liquid are made of highly corrosion resistant stainless steel
  • The premium dye liquor circulation supported by stainless steel centrifugal pump of high efficiency
  • Lifter reel driven by frequency inverter controlled motor
  • Service tank with feed pump,valves,stirring function
  • Level indicator with level sensor
  • High efficiency heat exchanger
  • Pneumatic valve for fill and drain function

◆Specification of a manufactured item

Model Nominal Capacity kg

Total Power kw

L(mm) W(mm) H(mm)
ECL-S-5 4-6 5.9 1400 1170 1800
ECL-S-15 8-15 7.7 2450 1050 2060
ECL-S-30 20-30 9.3 3750 1200 2200
ECL-S-60 40-60 11.2 4600 1400 2650
ECL-S-120 80-120 11.2 6200 1700 2650
