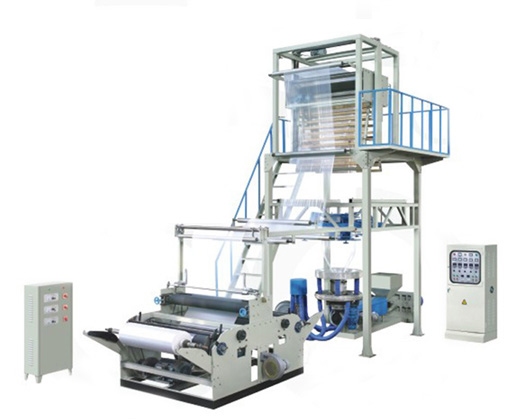

| S J-B50, 55, 65, B65, B75 Rotary Machine Head Film Blowing Machine Set(PE Heat-shrinkable film Blowing Machine) |
 |
|
|
|
|
| Product description |
| |
Feature：
It is used for blowing high-low pressure polyethylene, which has been widely used
for producing laminating film, packing film, agricultural covering film, bag or film
for textile and clothing and other packing material. The main motor adopts frequency
control of motor speed to improve the speed regulating stability of main motor and
save electricity by 30%. The screw and material barrel adopt 38 chrome- molybdenum
aluminum which has been nitrogen treated and the traction frame adopts lifting type.
No matter what size the film is, big or small, it can achieve the best effect of cooling. |
Main Technical Variables |
| Model |
SJ-B50 |
SJ-B55 |
SJ-B65 |
SJ-B65-1 |
SJ-B75 |
| Screw Diameter |
50mm |
55mm |
60mm |
65mm |
75mm |
| Screw Ratio(L/D) |
28:1 |
28:1 |
28:1 |
28:1 |
28:1 |
| Screw Speed |
lO-lOOr/min |
lO-lOOr/min |
10-100r/min |
lO-lOOr/min |
lO-lOOr/min |
Power of Main
Motor |
11Kw |
15Kw |
15-18.5Kw |
18.5-22Kw |
30Kw |
| Main Output |
35kg/h |
50kg/h |
65kg/h |
80kg/h |
120kg/h |
Max.Folding
Width of Film |
600mm |
800mm |
1000mm |
1200mm |
1500ram |
Single-sided
Thickness of Film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
O.01-0.10mm |
| Total Power |
22Kw |
26Kw |
30Kw |
36Kw |
46Kw |
| Weight of Machine |
2T |
2.3T |
2.6T |
3T |
4T |
| Overall Dimensions |
400x1800x3600mm |
4200x2000x4000mm |
4600x2300x4200mm |
4800x2500x4500mm |
5200x2800x5000mm |
|
| |
|
|
|
