Shenzhen Products >> Polybag making machine

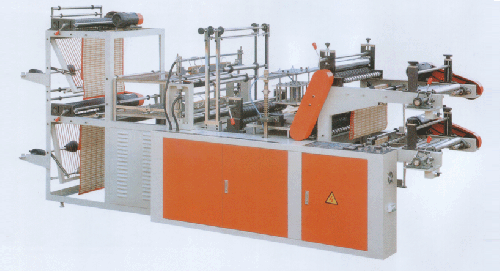

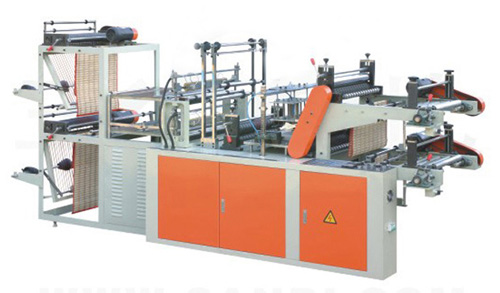

DZB500-800 Computer Control Tow-layer Rolling Bag-making Machine for Vest & Flat Bags
Product description
Features
This machine a specially-designed point-cut rolling dual-purpose for vest&flat bags, is controlled by a computer, the step(servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurate, the computer numerical control can be selected to adjust the length of bag the machine will automatically stop and sound a warning if there is something wrong with the printing bags.
Use The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.

Main Technical Variables

Model  DZB-500  DZB-600  DZB-700  DZB-800
Max. Width of bag-making(mm)  400  500  600  700
Max. Length of bag-making(mm)  1200  1200  1200  1200
Bag-making Thickness  0.008-0.10  0.008-0.10  0.008-0.10  0.008-0.10
Speed of bag-making(pc/min)  40-120  40-120  40-120  40-120
Power of motor(kw)  1.1  1.1  1.5  1.5
Electric Heating power  1.2  1.6  2  2.2
Machinery Dimensions
(L×W ×H) mm
3300×1100×1500  3300×1200×1500  3300×1300×1500  3300×1400×1500
Packing Dimensions
(L×W ×H) mm
3400×1200×1700  3400×1300×1700  3400×1400×1700  3400×1500×1700
Machinery weight(kg)  800  850  900  1000Â
