Shenzhen Products >> Polybag making machine
DFR-500, 600, 700 Computer Heat-sealing & Heat-cutting Bag-making Machine
RQL600-1000 Computer Heat-Cutting Bag-Making Machine
Product description

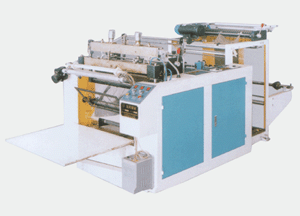

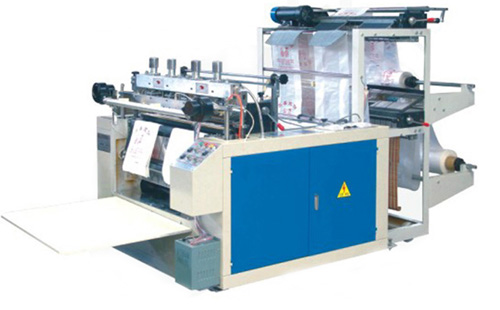

DFR-500, 600, 700 Computer Heat-sealing & Heat-cutting Bag-making Machine

It is used for producing vest bags and flat-opening bags with printing.
The main motor adopts frequency control of motor speed to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller. It adopts advanced computer to adjust length more freely and accurately.

Main Technical Variables
Model  500  600  700
Width of bag-making(mm)  30-450  30-550  30-650
Length of bag making(mm)  10-999  10-999  10-999
Speed of bag-making(pc/min)  30-150  30-150  30-150
Power of motor(kw)  1.1  1.1  1.5
Power of electric-thermal(kw)  1.6  1.6
Weight(kg)  650  750  850
Outline dimension
(L×W×H) mm
2900×1200×1550  2900×1350×1650  2900×1450×170×

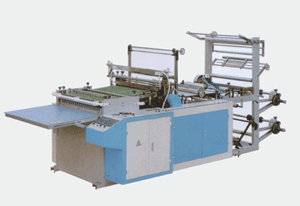

RQL600-1000 Computer Heat-Cutting Bag-Making Machine

This machine is suitable for heat-sealing and heat-cutting such materials as BOPP, OPP thermal contracting films, etc. And it is a king of ideal equipment for making socks bag, towel bag, bread bag and ornament bag, etc. The machine has such characteristics as length fixing by computer, photoelectric tracking stable performance(cast-iron stucture) and highspeed, etc. And has such functions as automatic gluing, automatic punching and lace heat-sealing,etc.

Main Technical Variables
Model  600  800  1000
Width of sealing & cutting  999mm  999mm  999mm
Length of sealing & cutting  580mm  780mm  980mm
Speed of bag-making  40-240pc/min  40-240pc/min  40-240pc/min
Power of motor  3kw  7kw  lOkw
Weight  700kg  850kg  950kg
Outline dimension
3600×1200×1700mm  3600×1400×1700mm  3600×1600×1700mm
