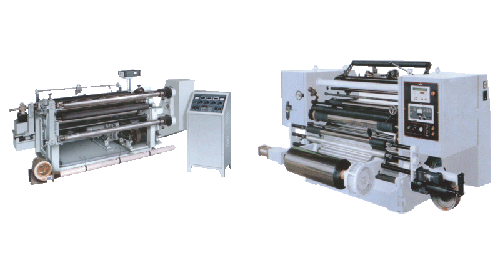

GFQ-1300B High Speed Slitting & Rewinding Machine
Model WFQ700-1300 Series Horizontal Type Computer Slip-separating Machine |
 |
|
|
|
|
| Product description |
| |

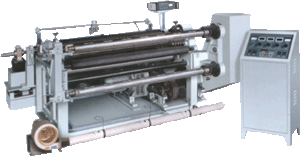

GFQ-1300B High Speed Slitting & Rewinding Machine
USE
Suitable for BOPP, PET, PVC, PE, aluminum foil and paper material etc. slitting and rewinding.
It integrates advanced mechanical, electric, optical and pneumatic technology and components.
This machine has been proved to be of high performance such as high speed, high stability,
easy operation and high slitting neatness It is a kind of idea machine for slitting.
Main Technical Variables
| Type |
GFQ-1300B |
| Thickness of Material |
0.012 - 0.15mm |
| Mechanical speed |
380m/min |
| Unwinding Diameter |
3" & 6" /700mm |
| Max.Unwinding Width |
1300mm |
| Width of final roll |
50-1300mm |
| Rewinding diameter |
3" cb/148mm |
| Deviation-rectifying method |
光电跟踪/跟边或跟踪 |
| Automatic Tension Control Method |
恒张力或变张力 |
| Total Power |
15Kw |
| Weight of Machine |
3.6T |
| Overall Dimension |
3050×1950×1650mm |
|
| |

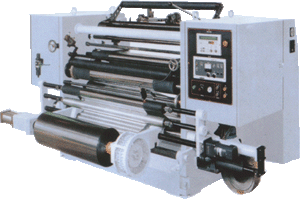

Model WFQ700-1300 Series Horizontal Type Computer Slip-separating Machine
Main Technical Variables
| Type |
WFQ-700 |
WFQ-1100 |
WFQ-1300 |
| Max. Width of Mother |
600mm |
1000mm |
1200mm |
| Max. Diameter of Mother Roll |
Φ600mm |
Φ600mm |
Φ600mm |
| Width of Final Roll |
30-600mm |
30-1000mm |
30-1200mm |
| Slitting and Rewinding Speed |
5-180m/min |
5-180m/min |
5-180m/min |
| Motor Power |
2.7Kw |
3 Kw |
3.5Kw |
| Weight of Machine |
1800kg |
2000 kg |
2200 kg |
| Overall Dimension |
2100×1800×1200mm |
2100×2000× 1200mm |
2200×2100×1200mm |
|
| |
|
|
|
